4000KG (9000LBS.) lifting capacity

• Above-ground or in-ground installation

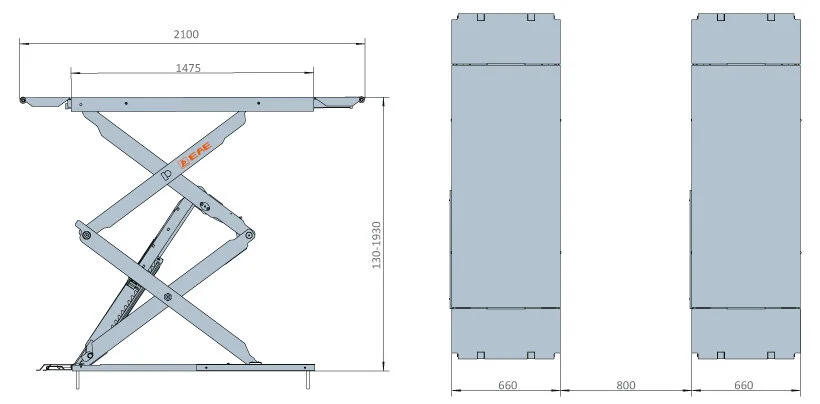

• 1930mm (76") lifting height

• 130mm(5 1/8”) initial height

• Four cylinder design

• Pneumatic released safety locking system

• Drive-on ramps lock into position as platform extensions

• Steady raising and lowering, no noise when lowered to ground

• Durable cylinders with anti-surge valves

• 24V safe control system

• Height limit switch

• Powder coated finish

• Self-lubricated bushing and bearing

• Aluminum motor with fan on top to avoid overheating caused by long time working

• It has been proofed by dynamic test with 115% of rated capacity and static test with 150% capacity

• Lifting Time: 60S

• Air Supply: 6-8bar

• Capacity of Motor: 2.2kW/3.0kW

• Platform Width: 660mm (26")

• Weight: 1000kg (2200LBS.)
