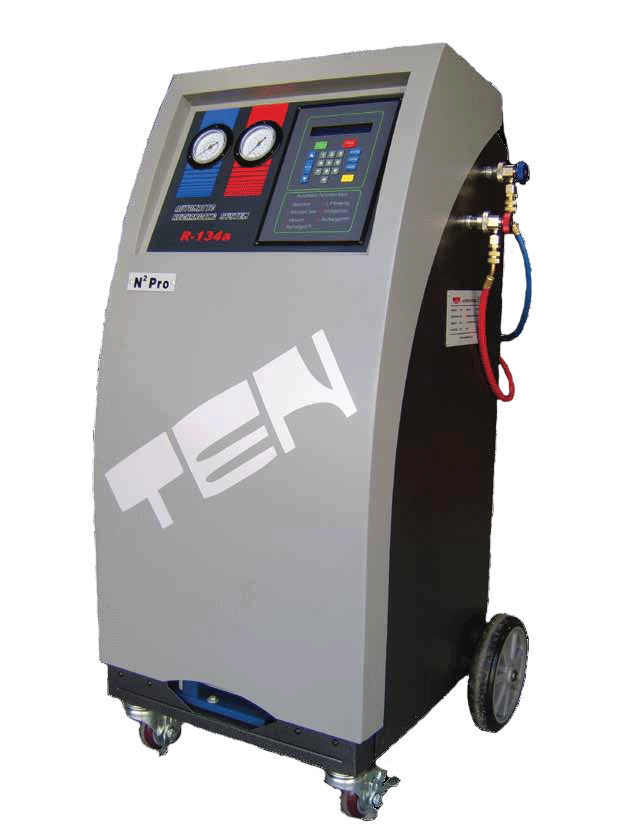

N2 Pro 1234yf Fully Automatic Air Conditioning Unit



The New N2 Pro spearheads the next generation of ”Fully Automatic” Air Conditioning Service Centres to use the new R1234-yf refridgerant, incorporating the latest ”Eco Friendly” Nitrogen leak detection system.

Designed for simplicity and ease of use the N2 Pro boasts an approximate 20 minute recovery cycle, making it the most advanced ”Eco Friendly” microprocessor controlled Air Con Service System to comply with the latest EU Environmental Laws.

  • R134a OR 1234yf configuration available
  • New Nitrogen Leak Pressure Test
  • Environmentally ”EU” Compliant
  • No messy leak dyes
  • Simple menu operation
  • Quick Service Cycle
  • Extra Long 5m ”Quick Connect” hoses
  • No Annual Database Subscription
  • Unbeatable ”Eco Friendly” Price
  • Manufacturers IMI Awards Training Available to meet 2010 Requirements



Specifications:



RefrigerantR1234yf (OR) R134a

Max operating pressure20 bars

Power supply230 V 50/60 Hz

Max operating temp5-50°C

Tank operational capacity10 kg

Pressure manometersDia. 80mm Pulse Free

Service hoses5.00 meters SAE J2196

Recovery speed200 – 240 9 (g/min)

Vacuum speed90 L/min

Recharging speed1200g/min

Filter drier capacity68 kg

Dimensions1190 x 610 x 640mm

Weight116 Kg

CompatibilityAll vehicles

Refrigerant Recovery & RecyclingAutomatic

Recovery of residual refrigerantAutomatic

Purging of non-condesableAutomatic & Manual

Compressor oil drainingAutomatic

Leak check under vacuumAutomatic

Oil RechargeAutomatic

Refrigerant rechargingAutomatic



Air Conditioning Service Centres:

The N2Pro & N2Pro-1234 “Fully Automatic” A/C Service Centres are fitted with integrated Nitrogen

Pressure Testing, as standard, in line with the new EC842/2006 Directive, now in force. Supplied with

“extra long” 5 metre Mains Lead and Connection Hoses, both models are available with a

Thermal Printer Option. On Site Instruction is given and “Full training” is available either

“on-site” at our IMI Training Centre here at Kings Lynn.

Key Options: Starter Kit (inc. Gloves, Goggles & Refrigerant)

Printer & Nitrogen Regulator .

N2Pro (R134A): £1,995.00 plus vat.

N2Pro (R1234YF): £2195.00 plus vat.
